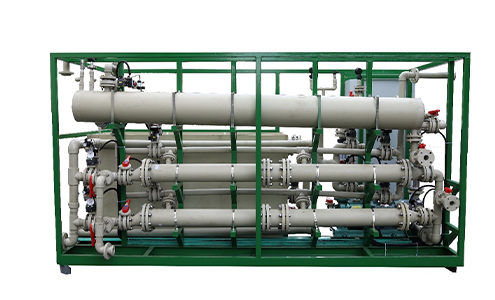

Swirl tubular membrane integrated equipment|Jianmo Technology - Silicon Carbide Ceramic membrane Manufacturer

Parameter name	Specific parameter
Tubular membrane small test device dimensions	L200W370T200 mm
Membrane dimensions	Ф40x250 mm
Membrane material	SiC
Filtration accuracy	0.1 μm
Effective membrane area	0.117 m²
Pure water flux	3000 LMH
Operation mode	Internal pressure
Filtration mode	Cross flow filtration/Dead end filtration
Operation pressure	≤0.3 MPa
Maximum trans-membrane pressure difference	0.2 MPa
PH range	0-14
Operation temperature	5℃-45℃
Oil tolerance	≤200 mg/L
Allowed turbidity	≤3500 NTU
Produced water turbidity	≤0.2 NTU
Micro-particles（>0.2µm）	100% removal
Suspended solids	≤1 mg/L

If you have any questions, please leave us a message

Swirl tubular membrane integrated equipment
